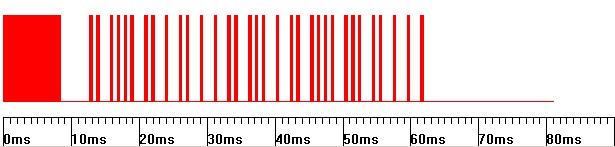

Exercise 1 Referring to the above trace, the bits are 0, 1, 0, 0, 0, 1, 0, 1, 1, 0, 1, 1, 1, 0, 1, 0, 0, 1, 1, 0, 1, 0, 0, 0, 1, 0, 0, 1, 0, 1, 1, 1. Remember, the last (33rd) pulse is the stop bit at the beginning of the trailer. Next, check that the Custom Code (first 8 bits) and
Custom Code (second 8 bits)
are complementary and reverse the order of the 8 bits and convert to hex: Next, check that the Data Code (third 8 bits) and
Data Code (fourth 8 bits)
are complementary and reverse the order of the 8 bits and convert to hex: |
